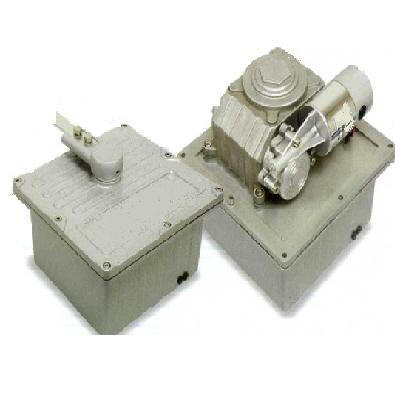

Conceal Swing Specification



Home
Contact Us
Products
Accessories
Reference

                                  Specification

Motor Voltage Rating 12 – 24V DC
Power Consumption 40 Watt
Motor Speed 4000 rpm
Output Speed 1.2 – 2.2 rpm
Opening Time 8 – 13sec @ 90º Turn
Thrust Force 0 – 80kg
Maximum Gate Weight 180kg
Maximum Gate Length 1.8m
Weight 8.5Kg
Dimensions (mm) L255 x W240 x H160

The above specifications are for reference purposes and are subjected to change without prior notice.
