MECHANICAL RELIABILITY

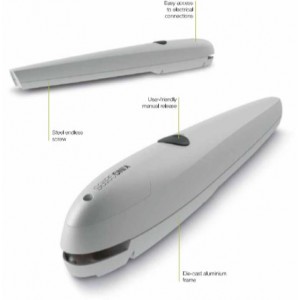

Couper is the idea automation for swing gates up to 2 m-400 kg. The mechanical system, inserted into two strong die-cast aluminium frames, is designed to guarantee great performances in any environmental condition.
EASY INSTALLATION

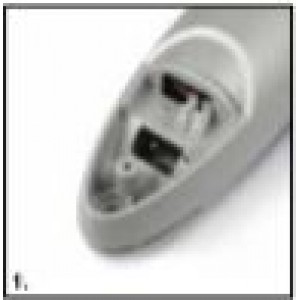

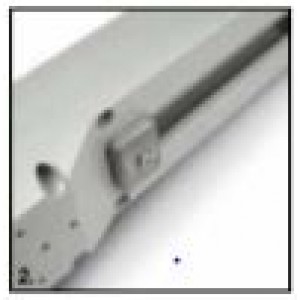

Just two cables for the electric connection of Couper. The access to the terminal block, set in the upper part of the operator, simplifies it's connection and installation. The regulation of the travel is simple and fast thanks to adjustable mechanical stops.
SMART TRADITIONAL ELECTRIONCS
STARG8 control units radically simplify the installer's job, guaranteeing high levels of performance in terms of safety, time and speed of instalation.
A single programming method speeds up the activation of the automatic devices and managing maintenance operations becomes simple and practical.
STARG8
1 control unit 24 Vdc and 1 control unit 230 Vac, for all gate motors.
Practical regulation using trimmers, self-learning gate travel programming using a single key, diagnostic LEDs and dip-switches for setting operating modes. Management of slow-down options, speed regulation and obstacle control in all versions. Plastic cover wth explanatory labels and spare fuses.
| Code | COUPER 24 |
| Motor supply (Vdc) | 24 |
| Maximum power draw (W) | 85 |
| Speed (m/s) | 0.018 |
| Force max (N) | 1500 |
| Working Cycle (%) | 50 |
| Travel (mm) | 320 |
| Protection level (IP) | 44 |
| Operating temperature (°C) | -20 ÷ +55 |
| Automation weight (kg) | 6 |
| Operator dimensions (mm) | 780 x 100 x 104 h |
